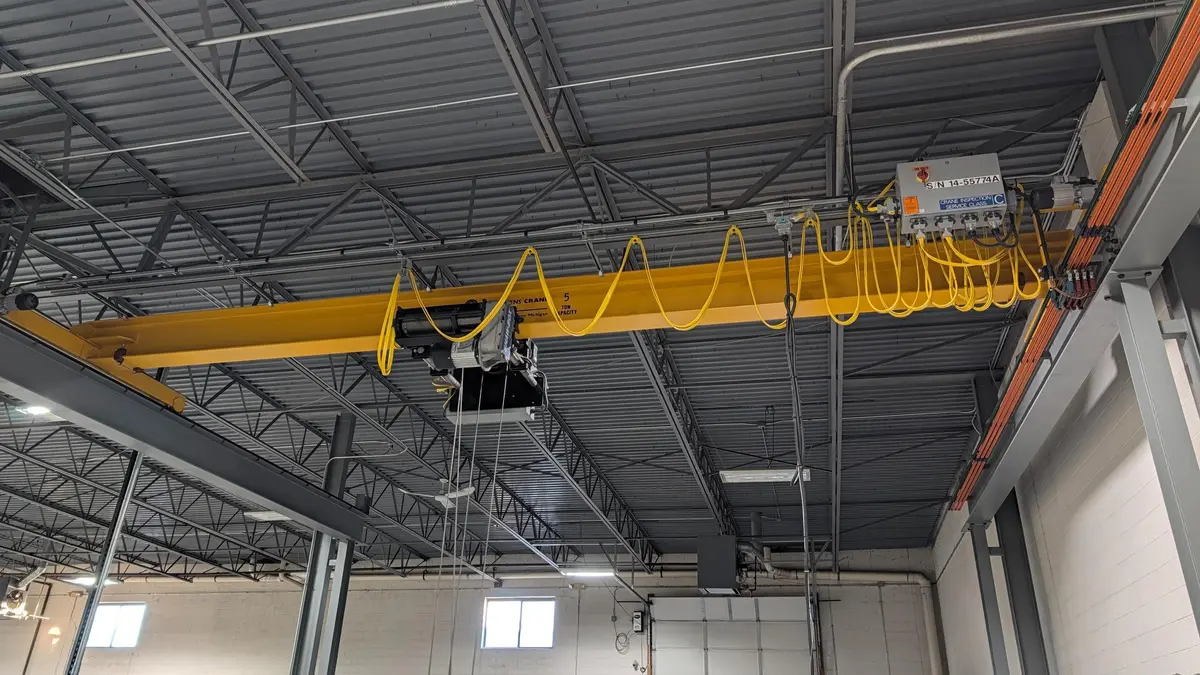

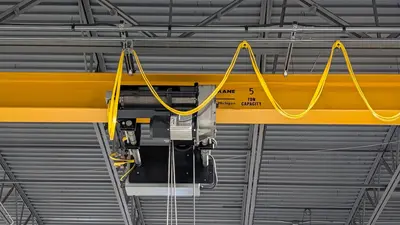

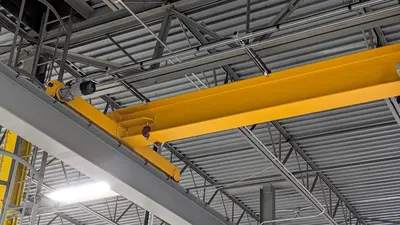

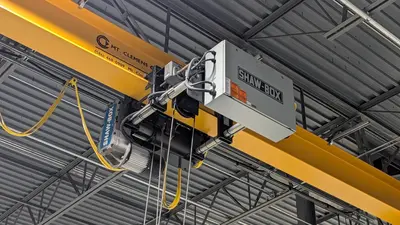

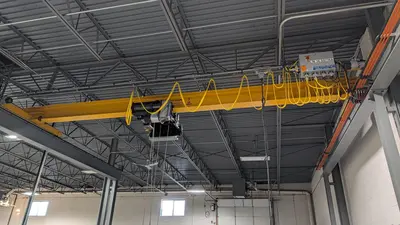

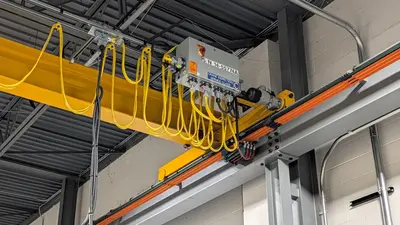

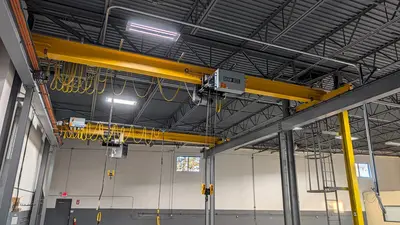

5 Ton, SHAW BOX, 27' 8" Span, 25' Lift, Pendant, VFD Bridge, 54'(x2) Rail/Runway/Cols Avail, 2014 [#2796]
ConditionUsed
1 available
STEEL SUPPORT SYSTEM SPECIFICATIONS:
Runway availability varies. Listed runway is not included in pricing, and can be split from package if desired, and/or other unlisted runway systems may be available. Please discuss requirements with a salesperson.
Runway Length: ~ 54' (Each Side)
Runway Size: W16x67
Runway Piece Length: ~ 27' (Please ask for details)
Support Spacing: ~ 27' (Please ask for details)
Rail: 30 LB
Column Height: 15' 4" (ladder column with 76" H backside extension column)
Column Size: W8x18; 28" x 12" x 3/4" BPs
Floor to Rail Height: 17' 0"
This crane is taken down and stored in Benton Harbor MI.
All hook bolts and splice joints are supplied with the steel.
Conductor bar is not included.
Loading is included in the price.
Highland Machinery & Crane makes all attempts to measure specs/dimensions as accurately as possible.
All critical dimensions are to be confirmed by customer.
Imperial
| Make | Shaw Box |
| Capacity | 5 Tons |
| Span | 27' 8" |
| Available Lift | 25' |
| Class | D / 2M |
| Crane Headroom | 17" |
| Wheelbase | 90" |
| Overall End Truck Length | 100" |
| Year | 2014 |
| S/N | G31717YD |
| Control | Pendant |
| Electrical | 208/3/60 |
| Status | Taken down |
| Bridge Speed | ~ 80 FPM Max, VFD |
| Bridge Power | 0.5 HP x 2 |
| Trolley Speed | 55 / 15 FPM |
| Trolley Power | 0.5 HP |
| Hoist Speed | 20 / 4 FPM |
| Hoist Power | 7.5 HP |
STEEL SUPPORT SYSTEM SPECIFICATIONS:
Runway availability varies. Listed runway is not included in pricing, and can be split from package if desired, and/or other unlisted runway systems may be available. Please discuss requirements with a salesperson.
Runway Length: ~ 54' (Each Side)
Runway Size: W16x67
Runway Piece Length: ~ 27' (Please ask for details)
Support Spacing: ~ 27' (Please ask for details)
Rail: 30 LB
Column Height: 15' 4" (ladder column with 76" H backside extension column)
Column Size: W8x18; 28" x 12" x 3/4" BPs
Floor to Rail Height: 17' 0"
This crane is taken down and stored in Benton Harbor MI.
All hook bolts and splice joints are supplied with the steel.
Conductor bar is not included.
Loading is included in the price.
Highland Machinery & Crane makes all attempts to measure specs/dimensions as accurately as possible.
All critical dimensions are to be confirmed by customer.
