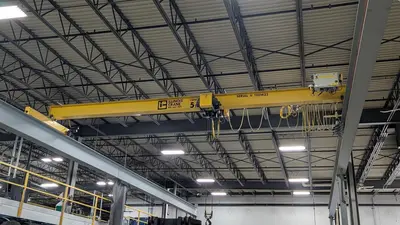

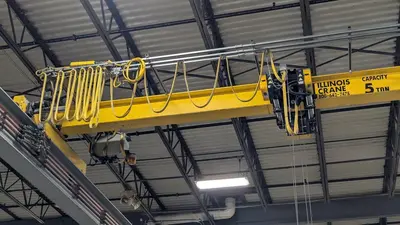

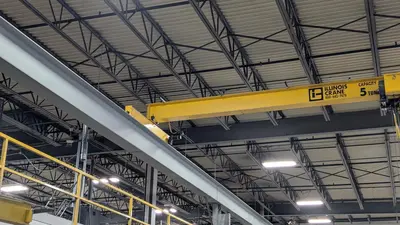

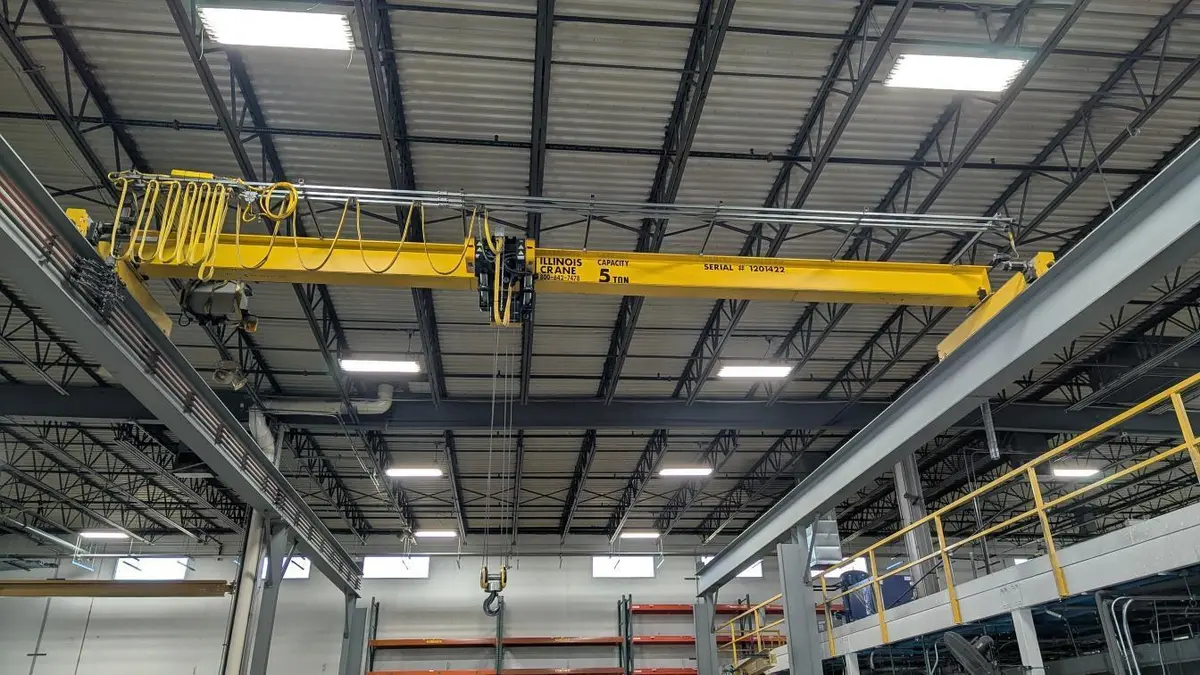

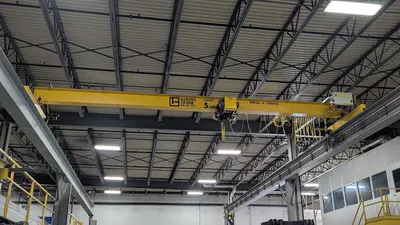

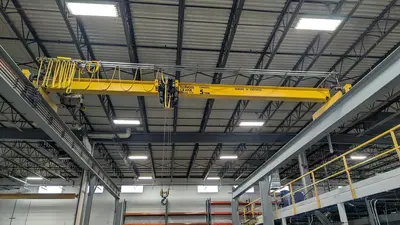

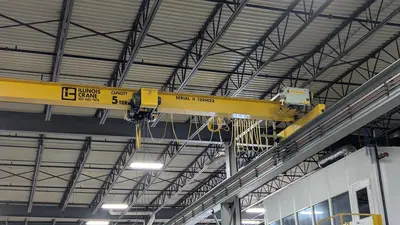

5 Ton, R&M, Span 31' 0", 2013, 20' Lift, Class D/H4, Radio, VFD Bridge & Trolley, 112'(x2) Rail/Rnwy/Cols Avail [#2745]
ConditionUsed
1 available
STEEL SUPPORT SYSTEM SPECIFICATIONS:
Runway availability varies. Listed runway is not included in pricing, and can be split from package if desired, and/or other unlisted runway systems may be available. Please discuss requirements with a salesperson.
Runway Length: ~ 112' (Each Side)
Runway Size:W24x104
Runway Piece Length: 42' 0", 43' 5", 27' 11" (Per Side)
Support Spacing: 42' 0", 43' 5", 27' 11" (Per Side)
Rail: Bar
Column Height: 18' 4"
Column Size: 3 @ W8x31 w/ 12" x 12" x 1/2" BPs, 5 @ W8x31 w/ W16 T-Beam Freestanding w/ 32" x 24" x 3/4" BPs
Floor to Rail Height: 20' 6"
This crane is taken down and stored in Benton Harbor MI.
Conductor bar is not included.
Loading is included in the price.
Highland Machinery & Crane makes all attempts to measure specs/dimensions as accurately as possible.
All critical dimensions are to be confirmed by customer.
Imperial
| Make | R&M |
| Capacity | 5 Tons |
| Span | 31' 0" |
| Available Lift | 20' |
| Class | D / H4 |
| Crane Headroom | 29" |
| Wheelbase | 78" |
| Overall End Truck Length | 94" |
| Year | 2013 |
| S/N | HNW34802 |
| Control | Radio w/ Backup Pendant |
| Electrical | 460/3/60 |
| Status | Taken Down |
| Bridge Speed | 80 FPM Max, VFD |
| Bridge Power | 0.5 HP x 2 |
| Trolley Speed | 65 FPM Max, VFD |
| Trolley Power | 0.75 HP |
| Hoist Speed | 20 / 3.3 FPM |
| Hoist Power | 7.5 HP |
STEEL SUPPORT SYSTEM SPECIFICATIONS:
Runway availability varies. Listed runway is not included in pricing, and can be split from package if desired, and/or other unlisted runway systems may be available. Please discuss requirements with a salesperson.
Runway Length: ~ 112' (Each Side)
Runway Size:W24x104
Runway Piece Length: 42' 0", 43' 5", 27' 11" (Per Side)
Support Spacing: 42' 0", 43' 5", 27' 11" (Per Side)
Rail: Bar
Column Height: 18' 4"
Column Size: 3 @ W8x31 w/ 12" x 12" x 1/2" BPs, 5 @ W8x31 w/ W16 T-Beam Freestanding w/ 32" x 24" x 3/4" BPs
Floor to Rail Height: 20' 6"
This crane is taken down and stored in Benton Harbor MI.
Conductor bar is not included.
Loading is included in the price.
Highland Machinery & Crane makes all attempts to measure specs/dimensions as accurately as possible.
All critical dimensions are to be confirmed by customer.
