10 Ton, P&H, Span 59' 8", 1998, 30' Lift, Spreader Beam Lower Block, Class D, Pendant, VFD All Motions [#2621]

Address: 1170 Cornerstone Place,, Benton Harbor, MI, 49022, US
Telephone: 269-926-9600

Sell Your P&H 10 Ton

269-926-9600

sales@highlandmachinery.com

ConditionUsed

Quantity

1 available

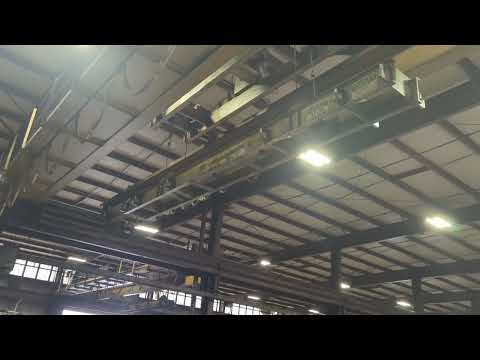

P&H 10 Ton Cranes - Overhead, Bridge | Highland Machinery & Crane (1)

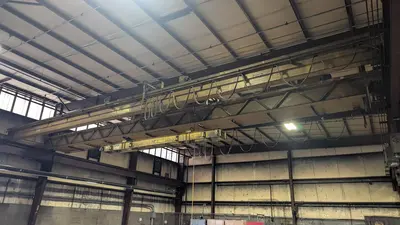

P&H 10 Ton Cranes - Overhead, Bridge | Highland Machinery & Crane (2)

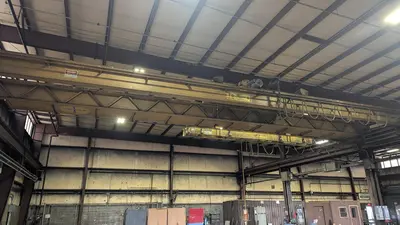

P&H 10 Ton Cranes - Overhead, Bridge | Highland Machinery & Crane (3)

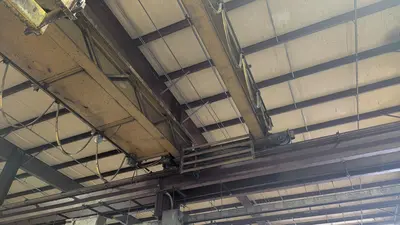

P&H 10 Ton Cranes - Overhead, Bridge | Highland Machinery & Crane (4)

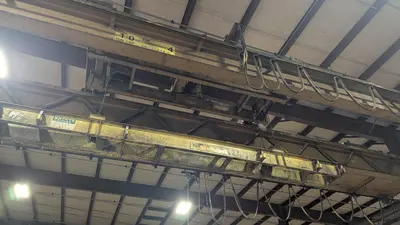

P&H 10 Ton Cranes - Overhead, Bridge | Highland Machinery & Crane (5)

P&H 10 Ton Cranes - Overhead, Bridge | Highland Machinery & Crane (6)

Sell Your P&H 10 Ton

Overview

Type:

Cranes - Overhead, Bridge

Manufacturer:

P&H

Model:

10 Ton

Stock #:

2621

Status:

For Sale

Specifications

ImperialMetric

Make	P&H	P&H
Capacity	10 Tons	9.072 t
Span	59. 8"	18.2 m
Available Lift	30' (Speader Beam Lower Block, 20' L)
Class	D	D
Crane Headroom	64"
Wheelbase	120"
Overall End Truck Length	152
Year	1998	1998
S/N	TP11351-1	TP11351-1
Control	Pendant	Pendant
Electrical	460/3/60	460/3/60
Status	Taken down	Taken down
Bridge Speed	170 FPM Max, VFD	170 FPM Max, VFD
Bridge Power	3 HP x 2	3 HP x 2
Trolley Speed	120 FPM Max, VFD	120 FPM Max, VFD
Trolley Power	1.5 HP	1.5 HP
Hoist Speed	35 FPM Max, VFD	35 FPM Max, VFD
Hoist Power	25 HP	25 HP

Runway systems may be available. Please discuss requirements with a salesperson.

This crane is taken down and stored in Benton Harbor MI.
Loading is included in the price.

Highland Machinery & Crane makes all attempts to measure specs/dimensions as accurately as possible.
All critical dimensions are to be confirmed by customer.
