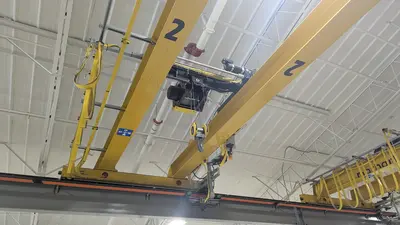

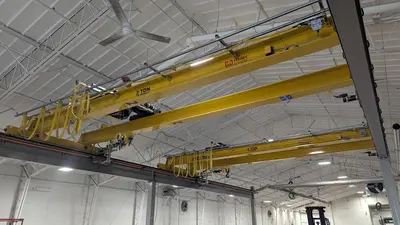

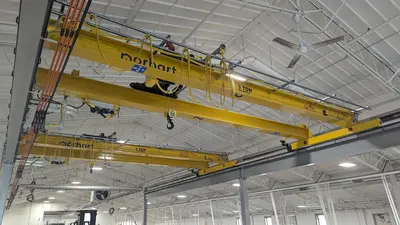

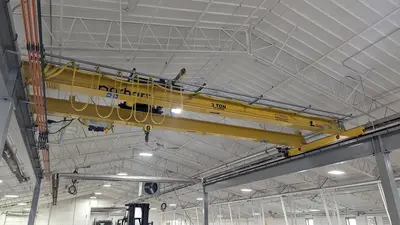

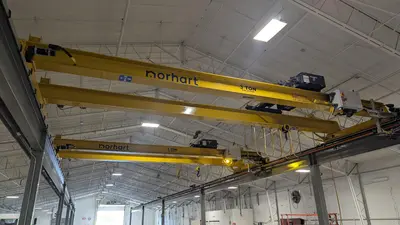

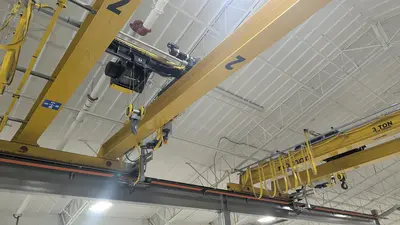

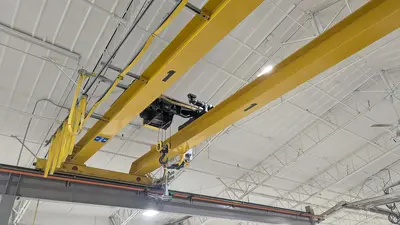

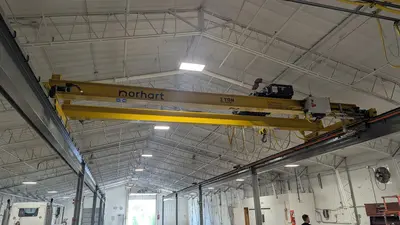

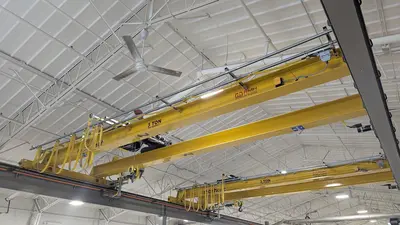

3 Ton, (2 x 3 Ton Cranes), R&M, Span 24' 0", 2022, 20' Lift, Class D, Radio, VFD Bridges/Trollies, 150' L Freestanding Structure [#2603]
ConditionUsed
1 available

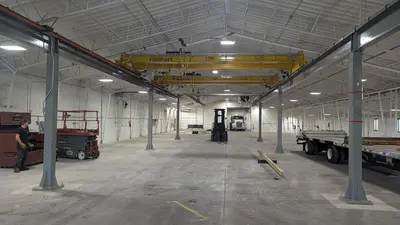

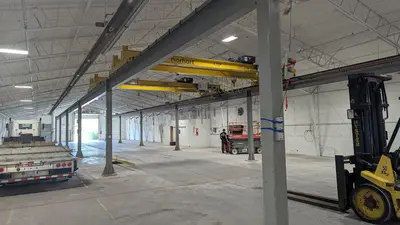

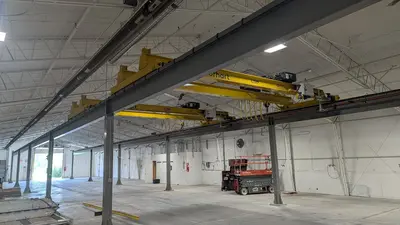

STEEL SUPPORT SYSTEM SPECIFICATIONS:
Runway Length: 152' (each side)
Runway Size: W18x46 w/ C10x15
Runway Piece Length: 30'
Support Spacing: 30'
Rail: 30 LB

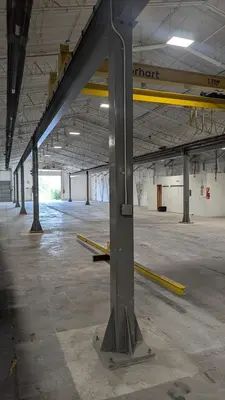

Column Height: 11' 1"
Column Size: 8" x 8" Square, w/ 20" x 20" x 1" Baseplates
Floor to Rail Height: 12' 10"
This crane is taken down and stored in Benton Harbor MI.
All hook bolts and splice joints are supplied with the steel.
Conductor bar is not included.
Loading is included in the price.
Highland Machinery & Crane makes all attempts to measure specs/dimensions as accurately as possible.
All critical dimensions are to be confirmed by customer.
Imperial
| Make | R&M |
| Capacity | 3 Tons (2 x 3T cranes) |
| Span | 24' 0" |
| Available Lift | 20' |
| Class | D (H4) |
| Crane Headroom | 33" |
| Wheelbase | 98" |
| Overall End Truck Length | 114" |
| Year | 2022 |
| S/N | 10000369492 / 3 |
| Control | Radio (can control both cranes in tandem, or each individually), plus backup pendants |
| Electrical | 460/3/60 |
| Status | Taken down |
| Bridge Speed | 80 FPM Max, VFD |
| Bridge Power | 0.5 HP x 2 |
| Trolley Speed | 65 FPM Max, VFD |
| Trolley Power | 0.5 HP |
| Hoist Speed | 20 / 3.2 FPM |
| Hoist Power | 6 / 1 HP |
STEEL SUPPORT SYSTEM SPECIFICATIONS:
Runway Length: 152' (each side)
Runway Size: W18x46 w/ C10x15
Runway Piece Length: 30'
Support Spacing: 30'
Rail: 30 LB
Column Height: 11' 1"
Column Size: 8" x 8" Square, w/ 20" x 20" x 1" Baseplates
Floor to Rail Height: 12' 10"
This crane is taken down and stored in Benton Harbor MI.
All hook bolts and splice joints are supplied with the steel.
Conductor bar is not included.
Loading is included in the price.
Highland Machinery & Crane makes all attempts to measure specs/dimensions as accurately as possible.
All critical dimensions are to be confirmed by customer.
