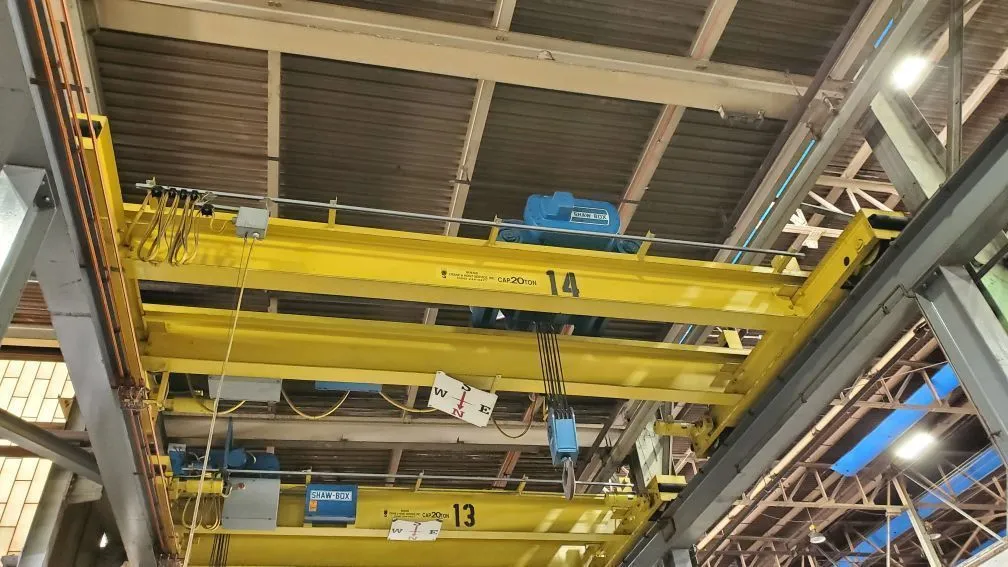

20 Ton, SHAWBOX, Span 19' 11", 1996, 20' Lift, Pendant, VFD Bridge/Trolley, 120'(x2) Rail/Rnwy/Cols Avail [#2314]
Cranes - Overhead, BridgeMake | Shaw Box |
Capacity | 20 T |
Span | 19' 11" |
Available Lift | 20 ft |
Class | C |
Crane Headroom | 46 in |
Wheelbase | 120 in |
Overall End Truck Length | 148 in |
Year | 1996 |
S/N | L5 84317/6 |
Control | Pendant |
Electrical | 230/460/3/60 |
Status | Taken down |
Bridge Speed | ~ 100 FPM Max, VFD |
Bridge Power | 2 HP x 2 |
Trolley Speed | ~ 65 FPM Max, VFD |
Trolley Power | 1.5 HP |
Hoist Speed | 9.5 FPM |
Hoist Power | 15 HP |
STEEL SUPPORT SYSTEM SPECIFICATIONS:
Runway Length: 120' (Each Side)
Runway Size: W16x77
Runway Piece Length: ~ 40' & 20' (please ask for details)
Support Spacing: ~ 20' (please ask for details)
Rail: 60 LB
Column Height: 17' 4"
Column Size: W12
This crane is taken down and stored in Benton Harbor MI.
All hook bolts and splice joints are supplied with the steel.
Loading is included in the price.
Highland Machinery & Crane makes all attempts to measure specs/dimensions as accurately as possible.
All critical dimensions are to be confirmed by customer.
