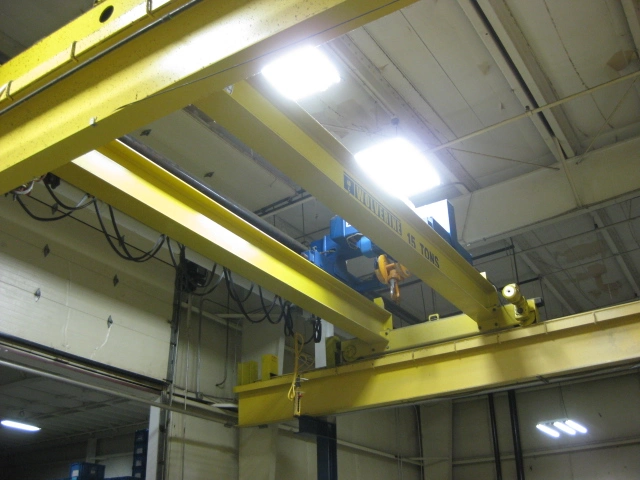

15 Ton, ABUS, Span 21' 8", 1999, 20' Lift, Radio/Pendant, Rail/Runway Avail [#1661]
Cranes - Overhead, BridgeMake | Abus |
Capacity | 15 T |
Span | 21.66' |
Available Lift | 20 ft |
Class | C |
Crane Headroom | 53 in |
Wheelbase | 102 in |
Overall End Truck Length | 115 in |
Year | 1999 |
S/N | 42/425594 |
Control | Radio w/ backup pendant |
Electrical | 460/3/60 |
Status | Taken down |
Bridge Speed | 80 / 20 FPM |
Bridge Power | 1.2 HP x 2 |
Trolley Speed | 60 / 15 FPM |
Trolley Power | 0.6 / 0.2 HP |
Hoist Speed | 16 / 3 FPM |
Hoist Power | 20 / 3 HP |
STEEL SUPPORT SYSTEM SPECIFICATIONS:
Runway availability varies. Listed runway can be split from package if desired, and/or other unlisted runway systems may be available. Please discuss requirements with a salesperson.
Runway Length: 180' (Each Side)
Runway Size: W24x55 w/ C13x31.8
Runway Piece Length: 60'
Support Spacing: 30'
Rail: 40 LB
This crane is taken down and stored indoors in Benton Harbor MI.
All hook bolts and splice joints are supplied with the steel.
Loading is included in the price.
Highland Machinery & Crane makes all attempts to measure specs/dimensions as accurately as possible. All critical dimensions are to be confirmed by customer.
